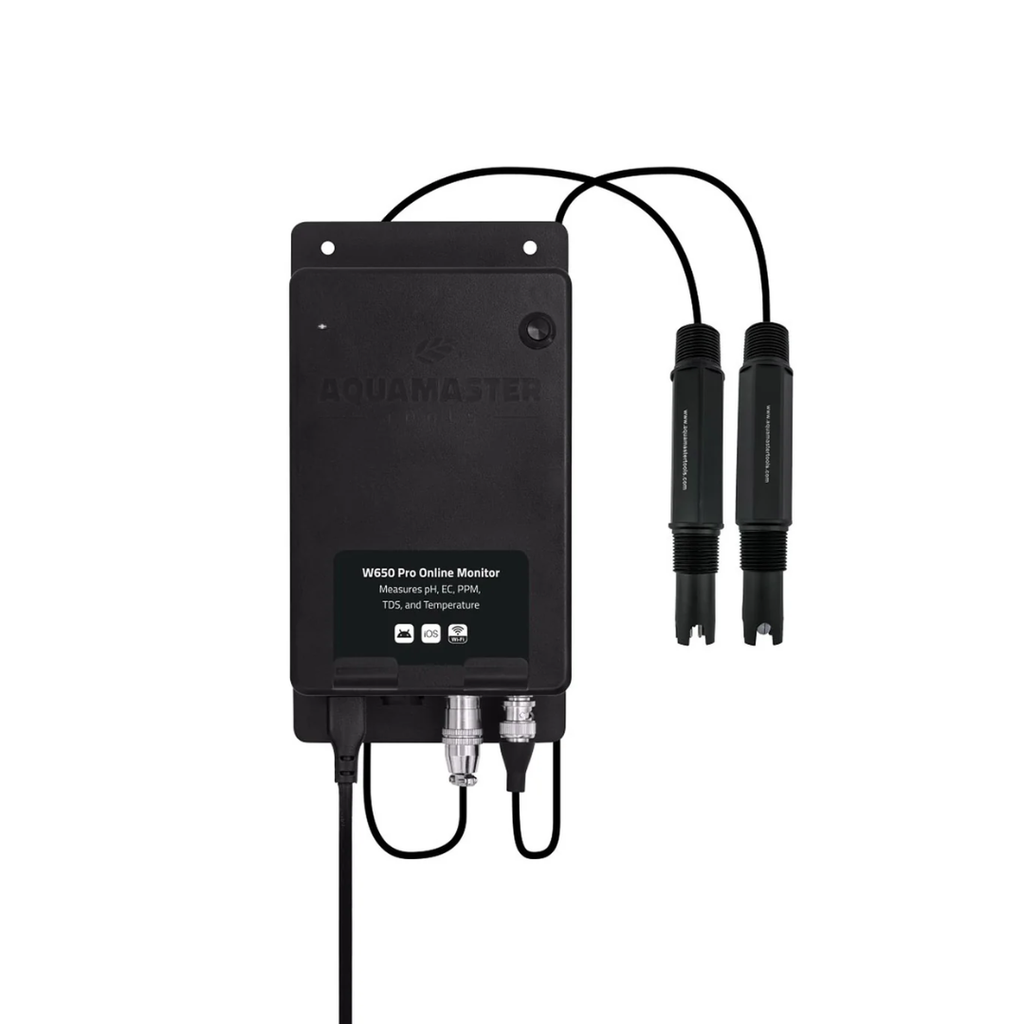

W650 Inline Online pH, EC, PPM, TDS & Temperature Meter
The W650 Inline offers the same advanced measurement capabilities and app functionality as the standard W650, but is specifically designed for direct installation into a pipeline. The inline electrodes feature a 3/4" threaded connection, allowing them to be screwed directly into a 3/4" tapping saddle. This enables accurate and continuous measurements directly in flowing water, without the need for a separate measurement chamber. Like the standard W650, the W650 Inline measures pH, EC, PPM, TDS, and temperature in real time and transmits all data via Wi-Fi to the Aqua Master Tools app. All inline electrodes are fully replaceable and designed to withstand water pressure up to 6 bar, making them suitable for pressurised pipelines and dosing systems.
Key features
• Continuous inline monitoring of pH, EC, PPM, TDS, and temperature
• Direct installation into pipelines using a 3/4" tapping saddle
• 3/4" threaded inline electrodes for easy mounting
• Real-time data available anywhere via Wi-Fi and app
• High and low alarms for all parameters
• Guided calibration and calibration reminders
• Unlimited inline devices can be managed in one app
• Compatible with other Aqua Master Tools devices
• Automatic temperature compensation
• Fully replaceable inline electrodes, rated up to 6 bar water pressure

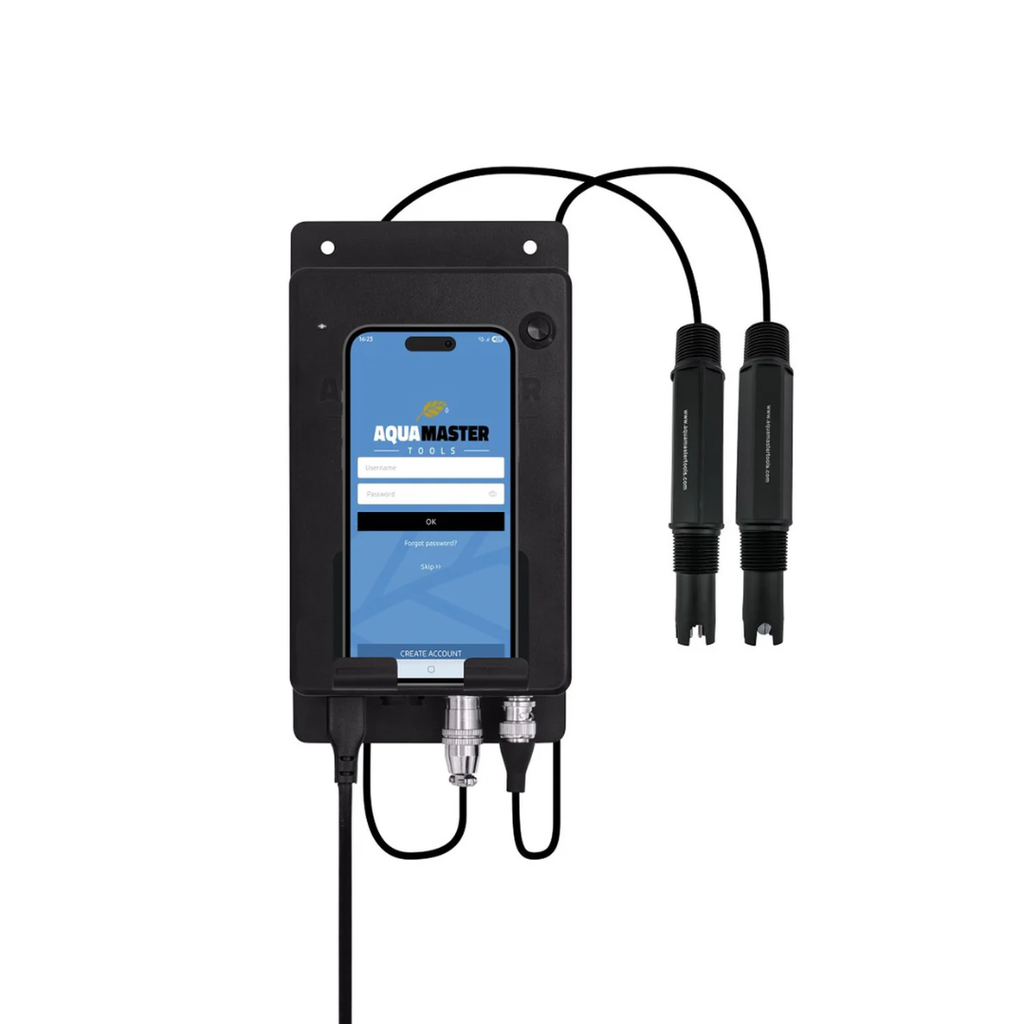

App functionality
The W650 Inline uses the same Aqua Master Tools app and offers identical functionality:
• Live monitoring of all parameters
• Historical data viewing up to 1 year
• Alarm settings for pH, EC, PPM, TDS, and temperature
• Push notifications for alarms
• Guided calibration directly in the app
• Device naming and internal notes
• Central management of multiple inline and non-inline devices
Applications
The W650 Inline is ideal for applications such as:
• Inline dosing systems
• Irrigation and fertigation lines
• Water treatment and filtration systems
• Industrial process water monitoring
• Continuous flow applications where direct pipeline measurement is required
(This product does not have a built-in display and must be connected to the user’s mobile phone or tablet via the app)
Specifications
|
Range
|
pH: 0.00~14.00 pH
EC: 0.00~20.00 mS/cm TDS: 0.00~14.00 PPT | PPM: 0~14000 PPM Temperature: 0°C~50°C (32°F~122°F) |
|
Resolution
|
pH: 0.01 or 0.1 pH
EC: 0.01 or 0.1 mS/cm TDS: 0.01 or 0.1 PPT | PPM: 7 PPM Temp.: 0.1°C (0.2°F) |
|
Accuracy
|
pH: ± 0.1 pH
EC: ±2% F.S. TDS: ±2% F.S. | PPM: ±2% F.S. Temperature: ±1.0°C (32°F) Temperature compensation: 0°C - 50°C (32°F - 122°F) |
|
PPM scale
|
700PPM
|
|
Features
|
Automatic temperature compensation
|
|
Calibration
|
pH: 1, 2 or 3 point cal 4.0-7.0-10.0 pH EC: 1 point auto cal 1.4-3.0-12.88 EC
|
|
Calibration indicator
|
Adjustable calibration indicators
|
|
Features
|
Low high, pH, EC and temp alarms. history diagram up to 1 year.
|
|
Power supply
|
AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs
|
|
Dimensions
|
250 x 110 x 80 mm
|
|
Waterproof
|
IP63 (electrodes are IP67 waterproof)
|
|
System requirements
|
Android (8.0 or later) or iOS (12 or later)
|
|
Weight
|
600 grams
|
|
Max. pressure inline electrode
|
6 Bar
|
|
Threaded inline electrode
|
Screw thread 3/4 male
|
