Description

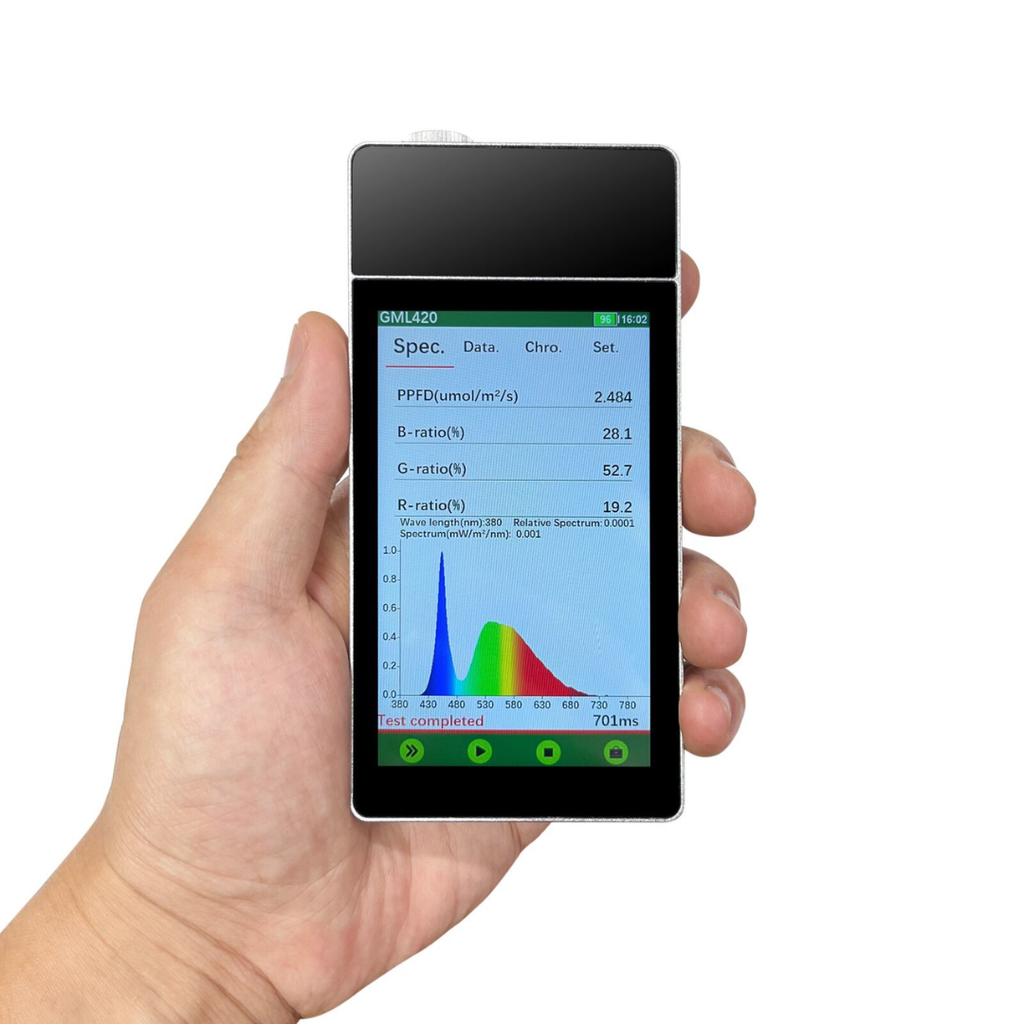

The GML420 Series Spectral & Illuminance Analyzer integrates a high-speed processor, a dedicated Linux-based OS, and a high-precision electronic CCD optical sensor. Utilizing an advanced long-focus, crossed asymmetric Czerny-Turner (CT) optical system, the device delivers a lightweight design, stable performance, exceptional accuracy, and outstanding portability.

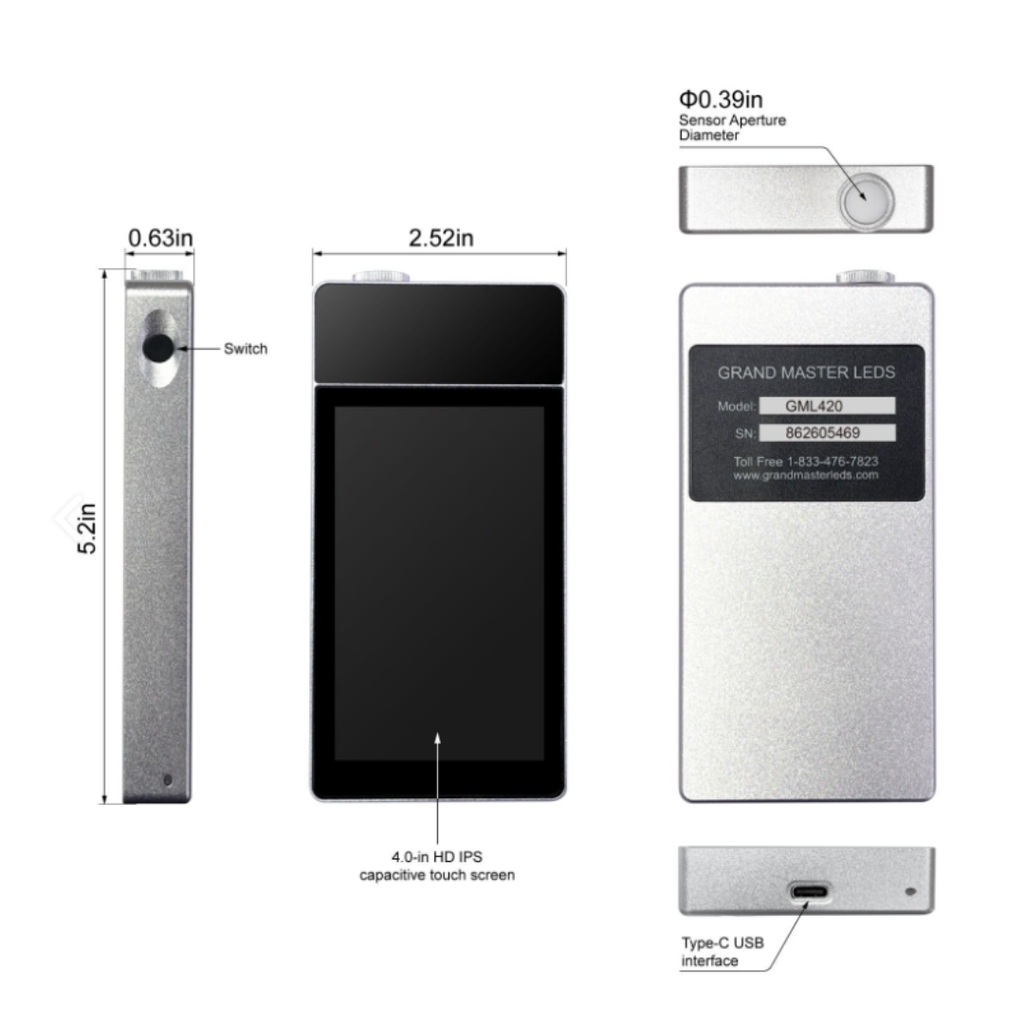

Equipped with a 4.0-inch HD capacitive touch screen, the interface offers an intuitive, smartphone-like user experience. It allows users to sample spectral distribution, color
metrics, and illuminance parameters anytime, anywhere. Dedicated PC software is also
included for streamlined data processing and in-depth analysis.
Specifications
| Wavelength Range | 380nm - 780nm |
| Colour Temperature Range | 1,000K - 10,000K |
| Iluminance Range |
0.1 lx ~ 200 klx |
| Wavelength Accuracy |
± 0.5 nm |
|
Chromaticity Coordinate Accuracy |
± 0.0025 |
|
Sensor Type |
High-precision CCD |
|
Spectral Bandwidth |
2 nm |
|
Display Screen |
4.0-inch HD IPS capacitive touch screen |
|
Battery Life |
Up to 12 hours of continuous operation on a full charge |
