Description

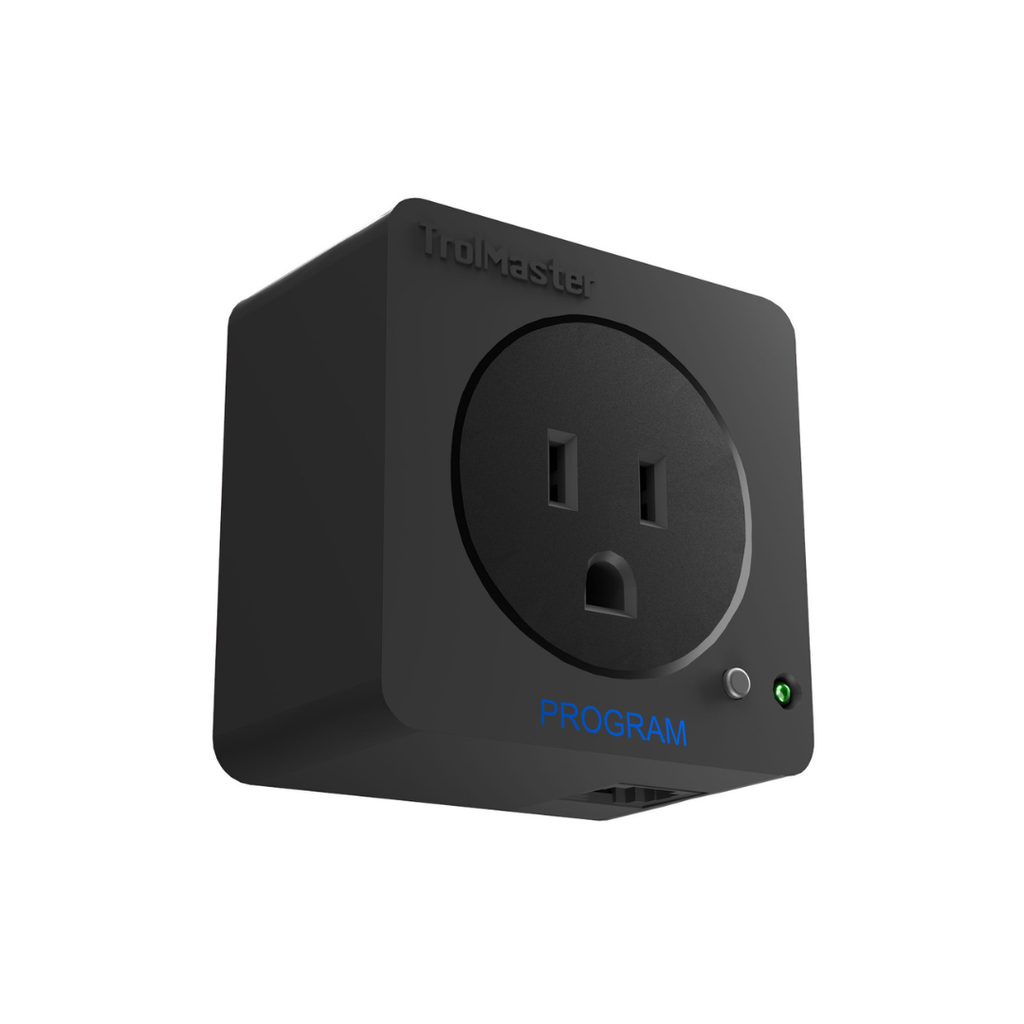

The TrolMaster DSP-2A program device module functions as a versatile timer, enabling users to connect and control any device that requires time-based operation to the Hydro-X system. It can manage any device that operates at 10 amps or less at 240 volts.
LED Status:
Blinking green FAST: Indicates that the module has not been addressed to the controller or lacks a proper connection. Press the small button on the module to link it during installation.
Blinking green SLOW: Signifies that the module is addressed and connected to the controller but is currently turned OFF.
SOLID green: Shows that the module is addressed, connected, and currently turned ON.
Blinking red: Indicates that the module is overloaded. To reset, unplug the module from the power source.
Package Content:
1 x Device Station DSP-2A
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
TrolMaster sensors and devices are only compatible with TrolMaster control units.
