Description
Trolmaster Hydro-X Temperature Device Station DST-2A

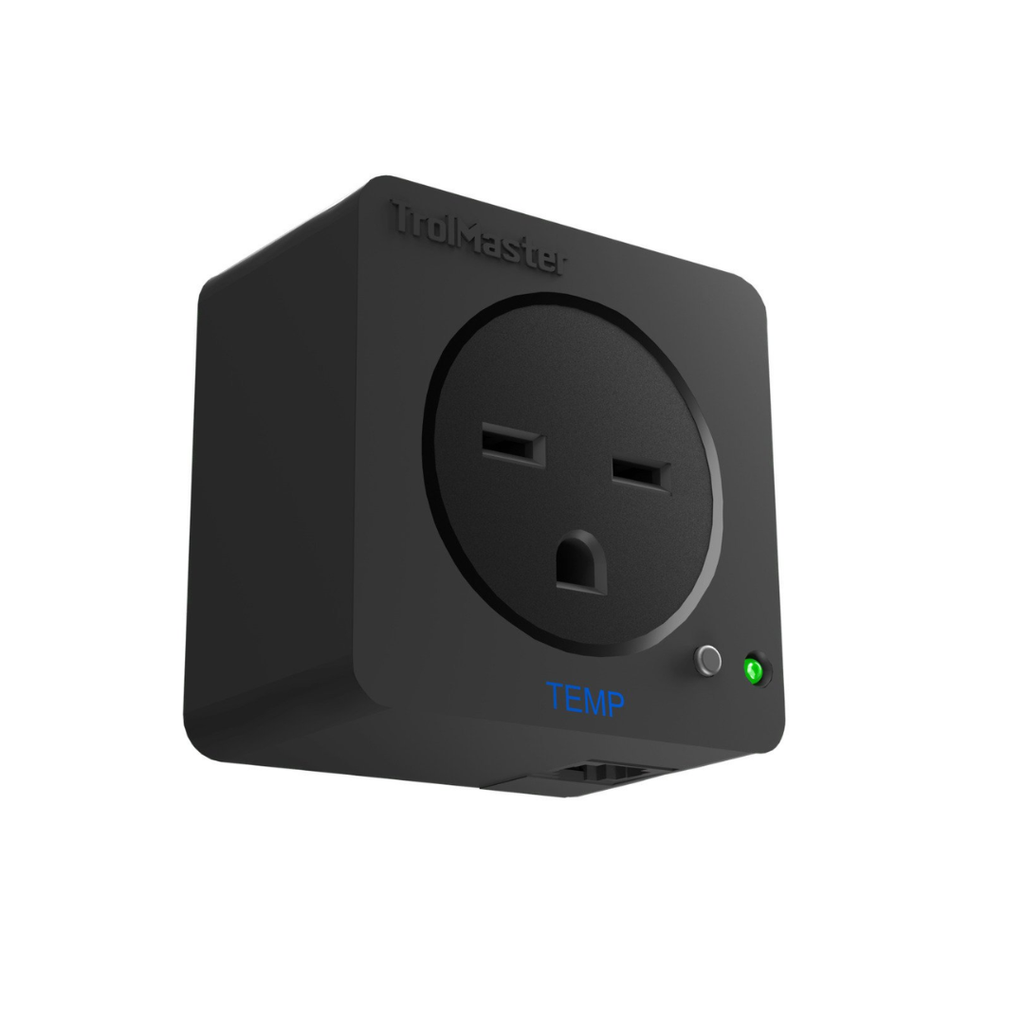

Image of DST-1 for display purposes; DST-2A comes with AU plug
The TrolMaster DST-2A Temperature Device Station enables users to easily connect and control standard heating or cooling devices with the Hydro-X system. It can manage any heating or cooling device that draws 10 amps at 240 volts or less.
LED Status Indicators:
Blinking Green FAST: Indicates the module has not been addressed to the controller or lacks a good connection. Press the small button on the module to address/link it when first installed.
Blinking Green SLOW: Signals that the module is addressed and connected to the controller but is currently turned OFF.
Solid Green: Shows that the modules are addressed, connected, and currently turned ON.
Blinking Red: Indicates the module has been overloaded. To reset, unplug the module from the power supply.
Package Contents:
1 x Device Station DST-2A
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
